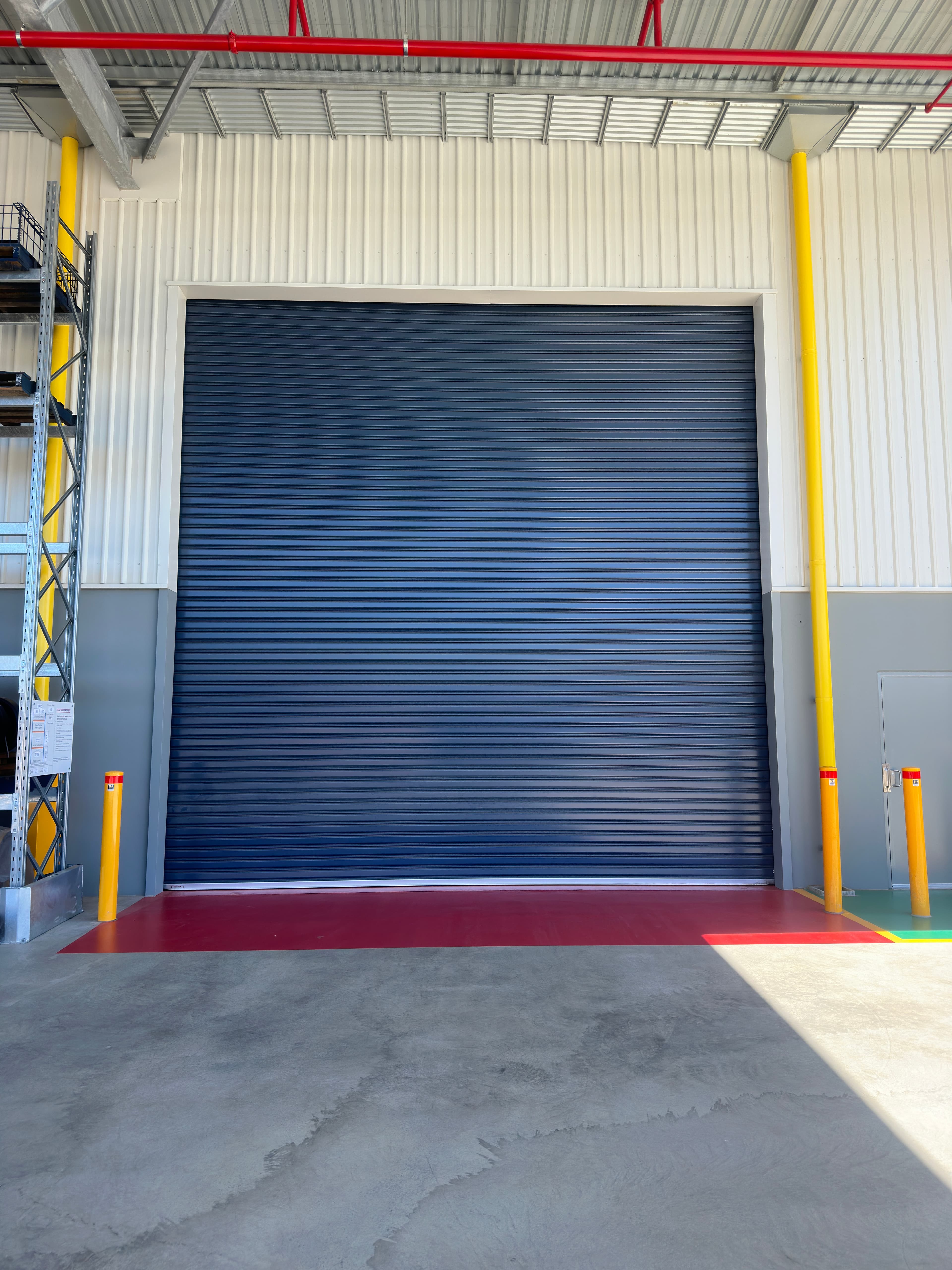

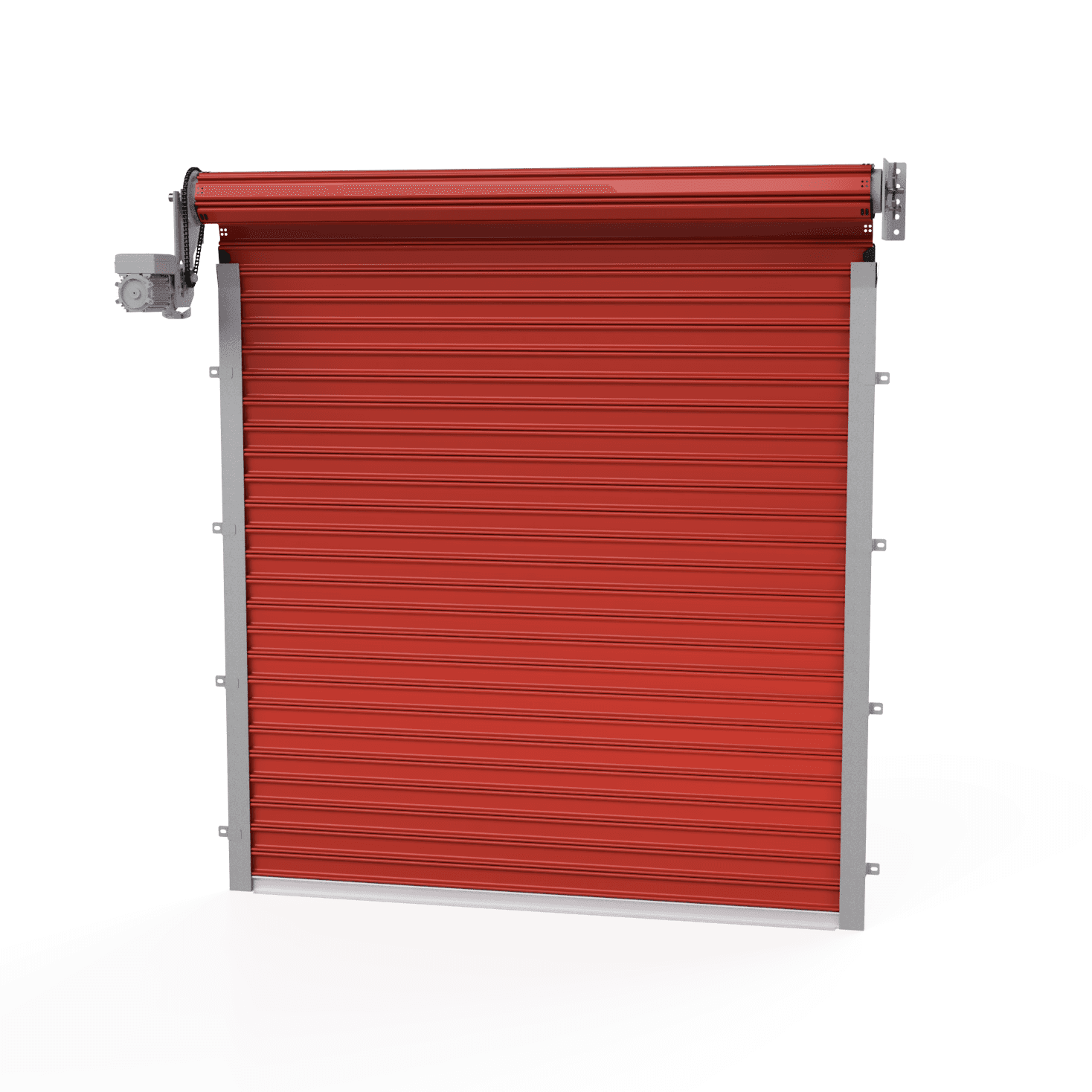

100mm Roller Shutter
Our most popular shutter for commercial and industrial openings.
Built from 1.0mm galvanised steel with interlocking slats for openings up to 10 metres wide. Available in solid, perforated and slotted curtain profiles with fire-rated and cyclone-rated configurations.
Technical data
Curtain Material:
- Galvanised Steel (G250, Z275)
Slat Profile:
- Interlocking Slats
Slat Thickness:
- 1.0mm
Finish Options:
- Galvanised / Powder Coated
Maximum Width:
- 10,000mm (bigger sizing available)
Maximum Height:
- 10,000mm (bigger sizing available)
Curtain Weight:
- Approx. 16kg/m²
Wind Resistance:
- Tested up to N4 / C4 classification
Ventilation:
- Slotted: 20-23% airflow
- Perforated: 40.9% airflow
Drum :
- Balanced / non-Balanced
Drum Cycles:
- Low Cycle 50,000 – 80,000 Cycles
- High Cycle 150,000 Cycles
Bottom Rail:
- Aluminum with Rubber Weather Seal
Guides:
- Galvanised Steel with optional Lugs
Perforated & Slotted Options
Available in perforated (40.9% airflow) or slotted (20–23% airflow) curtain profiles for car parks, plant rooms and ventilated enclosures.
Fire-Rated Configurations
Can be configured with fire-rated components for compartmentalisation in buildings requiring compliance with fire safety regulations.
Cyclone & Wind-Lock Rated
Tested up to N4 / C4 classification under AS/NZS 1170.2. Wind-Lock guides available for cyclone-prone regions across Western Australia.
All Sizes Available
Custom manufactured to your exact specifications for openings up to 10 metres wide and 10 metres high, with larger sizes available on request.
High Cycle Durability
Engineered for high-traffic environments with drum configurations rated up to 150,000 cycles for demanding daily use.
Colour & Finish Options
Choose from galvanised steel finish or Dulux powder coating in a wide range of colours to match your building or brand.
Motorised Operation
Motorised operation with remote, switch or building management system integration for effortless daily use and enhanced security.
Standard or Reverse Rolled
Available in standard or reverse rolled configurations to suit face-fix, reveal-fix or between-jamb installations.
Easy to Repair
Individual slats can be replaced on-site without removing the entire curtain — minimising downtime and keeping your business running.
Bottom Rail Options
Aluminium bottom rail with rubber weather seal and optional brush strip for protection against vermin, dust and weather ingress.
Local Manufacturing
Custom built locally in Perth by Force Shutters using quality Australian-standard materials and expert craftsmanship.
Ready to get started?
Contact Force Shutters today for a free consultation and quote. Experience Perth's quickest turnarounds.
